FlowMaster™ Enigma Bot

Real Time Order Flow Analysis + Execution

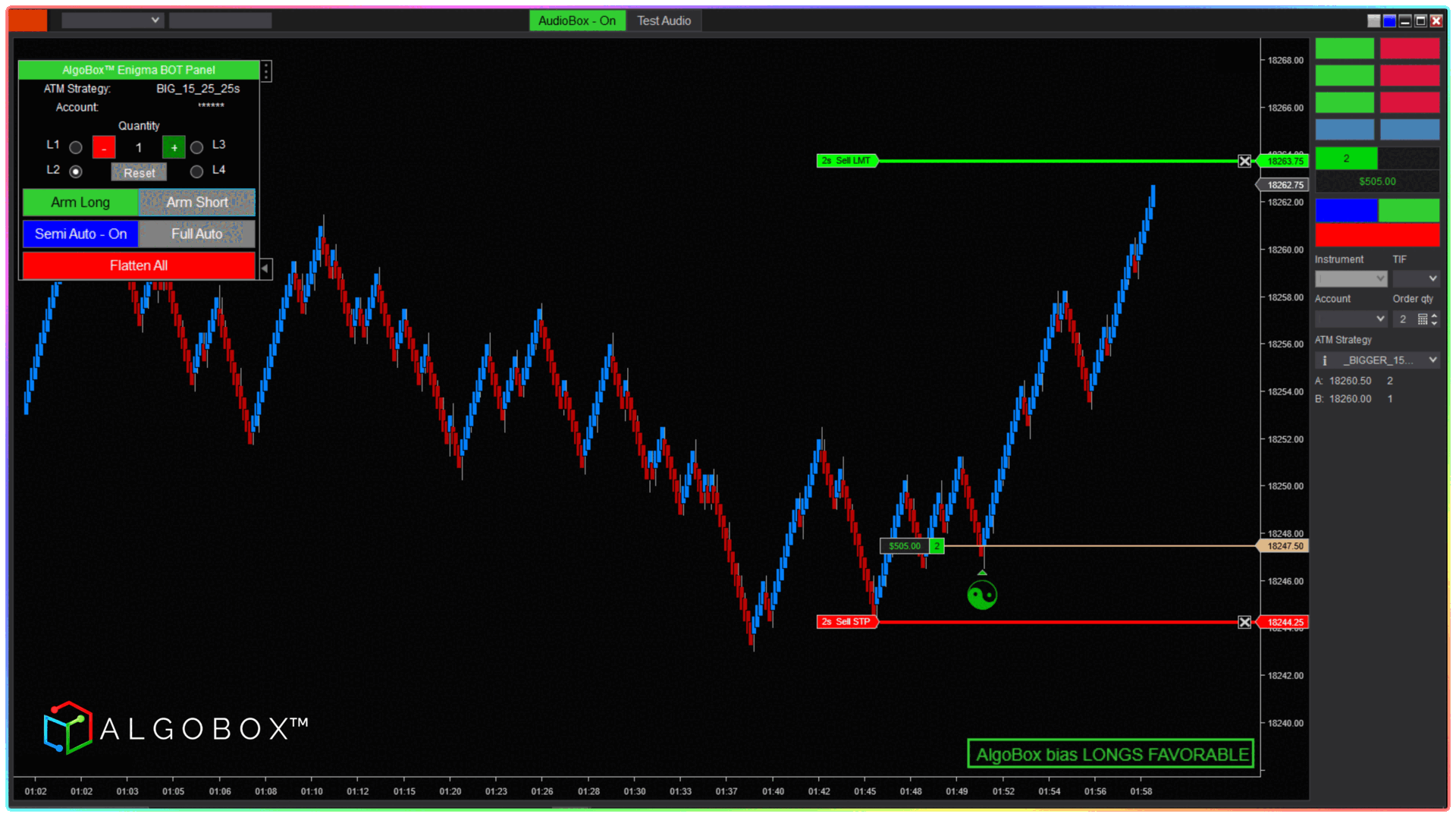

As if AlgoBox™ FlowMaster™ Enigma couldn't get any more impressive, Enigma Bot Panel appears. Configure the Enigma Bot to one Ripple chart per instrument and you're a few clicks away from automated Real Time Order Flow Analysis and execution.

Overcome the limitations of human reaction time with AlgoBox™ FlowMaster™ Enigma. When a valid signal appears, Enigma Bot has already placed the trade before the average human can react in time.

WARNING: Enigma Bot MUST be supervised by you, the trader, at all times. Extreme volatility and market speeds may still cause slippage and other issues. Trading is risky and all trading is at your own risk.

"Semi Auto" or "Full Auto" must be ON for AlgoBox™ FlowMaster™ Enigma Bot to execute on the next signal.

Click Arm Long to prime Enigma Bot for only buy trades.

With "Semi Auto" ON, Enigma Bot will only enter the next trade. Once this trade has been closed, Enigma Bot will remain idle.

Full Auto On = Continuous

"Full Auto" turned ON will set Enigma Bot to continuously trade every valid signal. You MUST supervise it's activities.

Click Arm Short to prime Enigma Bot for only sell trades.

AlgoBox™ FlowMaster™ Enigma will take both buy & sell trades if you have both Arm Long and Arm Short activated.

Open positions will be closed if a valid opposing signal is entered. In other words, Enigma Bot will reverse directions when Enter Continuous is selected with Arm Long and Arm Short.

While AlgoBox™ FlowMaster™ Enigma was originally designed for the fastest charts, it can be added to multiple charts of different time frames or AlgoBar sizes of the same instrument, as signals may differ based on its proprietary calculations.

AlgoBox™ and all FlowMaster™ tools only require Level 1 data to operate.

NinjaTrader's Order Flow package is NOT required.

Adaptable Panel

The FlowMaster™ Enigma Bot Panel is visually adaptable, allowing you to move or minimize it to suit your preferred placement.

Confluence Level

The FlowMaster™ Enigma Bot can be configured to different levels of confluence. The higher the number, the higher the amount of confluence you are demanding the indicator to use, which means there could be less signals appearing on L4 as opposed to L1 (see videos below).

The original FlowMaster™ Enigma setting was Level 2 Confluence.

FlowMaster™ Enigma Bot Settings

1. Audio

The audio alerts you once a FlowMaster™ Enigma is plotted on the chart. You can customize these alerts by changing the audio to a preferred voice or sound, or turn them off entirely.

Sound Alert: Receive sound alerts when a FlowMaster™ Enigma is detected on the chart, with the option to add your own custom sound.

AlgoVoice: You can enable or disable real-time audio alerts as per your preference.

Voice Rate: You can customize the speed of the AlgoVoice alerts to your preference.

All custom sounds must be in .wav file format only.

2. Calculations

Allows you to control how frequently the FlowMaster™ Enigma indicator recalculates. The Calculation sets the frequency of these calculation cycles. Customization allows for greater control over data update rates.

Calc Override: Default setting is unchecked. Check this setting to customize and utilize Calc Interval.

Calc Interval: Set your custom desired calculation interval. The smaller the number, the more frequently the indicator will recalculate, which increases processing load on your system's CPU. The default setting of 1000 is in milliseconds, which is equal to 1 second. If you wanted the FlowMaster™ Enigma to calculate every half second (twice as fast as default 1000ms), then you would enter 500 in this field.

3. Custom Settings

Confluence Levels: Adjust the strength of the FlowMaster™ Enigma confluence levels between L1, L2, L3, and L4 to suit your needs.

4. Filtering

MACVU Filtering: This feature allows you to filter enigmas based on the strength levels of the MACV Ultimate.

Color Code: This feature allows you to filter enigmas based on the color of the MACV Ultimate.

Power Number: This feature enables the display of the FlowMaster™ Enigma’s power number.

Power Number Font: This setting allows you to customize the font of the FlowMaster™ Enigma’s power number.

Power Number Color: This setting allows you to select the color for displaying the power number of the FlowMaster™ Enigma.

5. Optics

Show Enigma Target: Toggle this setting ON or OFF to display or hide the target line when an Enigma is plotted.

Enigma Target: Customize the Enigma Target line according to your preferred tick value, with the default setting at 20 ticks.

6. Time Filtering

Start Time: Allows you to customize the time of day the Enigma Bot can start to operate.

End Time: Allows you to customize the time of day the Enigma Bot stops operating.

7. Data Series

Displays the current chart instrument, contract date and configurations applied.

Input Series: This setting determines which chart the indicator is displayed on, linking the indicator to the selected chart data.

8. Setup

Allows you to add a label, set the maximum bars to look back, and configure calculations based On Price Change, On Bar Close, or On Each Tick.

On Price Change: Updates the indicator only when there is a change in the instrument's price.

On Bar Close: Updates whenever a new bar closes, recalculating based on the finalized bar data to reflect the latest market conditions and changes in trends. Be mindful of whether you are using AlgoBars or range bars. This is the default setting for this indicator.

On Each Tick: Updates with every price change or tick in the market, providing real-time adjustments and reflecting the most current data. This setting increases CPU processing load.

9. Visual

Allows you to customize button colors, adjust the button placement, and modify the font type and size to suit your preferences. The Visual Settings shown are default settings which usually do not need to be changed unless specified in release notes or instructional video, live stream or on Discord etc. Auto scale is recommended to be unchecked.

Auto Scale: Automatically adjusts the indicator’s scale to fit within the chart’s price axis, ensuring it’s properly visible without manual adjustments.

Displacement: Shifts the indicator's plot forward or backward on the time axis. This setting is useful for aligning the indicator with price bars or other chart elements, especially in cases where you want to visualize future or past data relative to the current price.

Display in Data Box: Determines whether the values are shown in the Data Box, which is an on-screen display that provides detailed information about the current values when you hover over or click on the chart.

Panel: Specifies which panel or sub-panel the indicator is displayed in on the chart. Indicators can be placed in separate panels above or below the main price chart, allowing for organized and uncluttered visualization of multiple indicators.

Price Markers: Controls the display of markers or symbols on the price axis associated with the indicator's values. This setting helps highlight specific price levels or events directly on the price chart for better visibility and analysis.

Scale Justification: Determines where the indicator is positioned on the price scale, such as to the right or left side of the chart.

Visible: Toggles the overall visibility of the indicator, allowing you to hide or show it on the chart as needed.

All settings displayed in the settings image are the current default configurations provided by NinjaTrader and/or the AlgoBox™ Pro software, and may change at any time in future software updates without notice.

Video Tutorials: Enigma Bot

Click here for more in-depth information on Enigma Cadence.

AlgoBox™ and all FlowMaster™ tools only require Level 1 data to operate. Level 2 data is not required.

NinjaTrader's Order Flow package is NOT required.

AlgoBox™ FlowMaster™ Enigma may NOT be included for all AlgoBox™ memberships. Availability is subject to change at any time without notice. Join our free Discord for more information and special promotional offers.

Only available on AlgoBox™ for NinjaTrader 8. Try AlgoBox™ for free today.
